- Brand Name: KONNWEI
- Origin: Mainland China
- Hardware Version: 2021 Newest
- Software Version: 2021 Newest
- Item Type: Code Readers & Scan Tools
- Certification: CE
- Language: Dutch,English,French,Italian,Portuguese,Russian,Spanish
- Software Update: No
- OEM NO.: /
- Battery Tester Function 1: 12V Battery Charger Tester Tool
- Car Battery Tester Function 2: 12V 5A battery charger tester check
- Car Battery Tool Function 3: Loading Test, Charging Test
- Battery Charger Function 4: Cranking Test, Battery Voltage
- Battery Tool Function 5: Battery Charger Tool
- Warranty: One Year Warranty

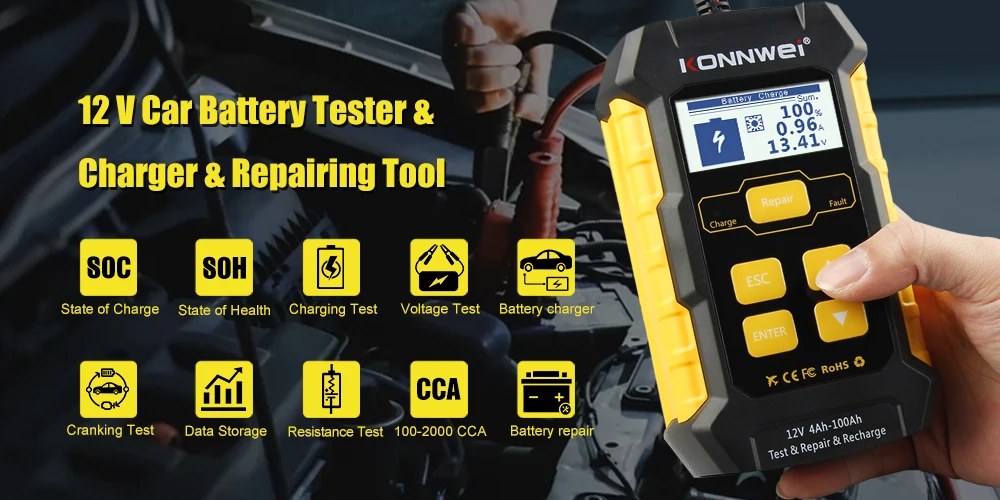

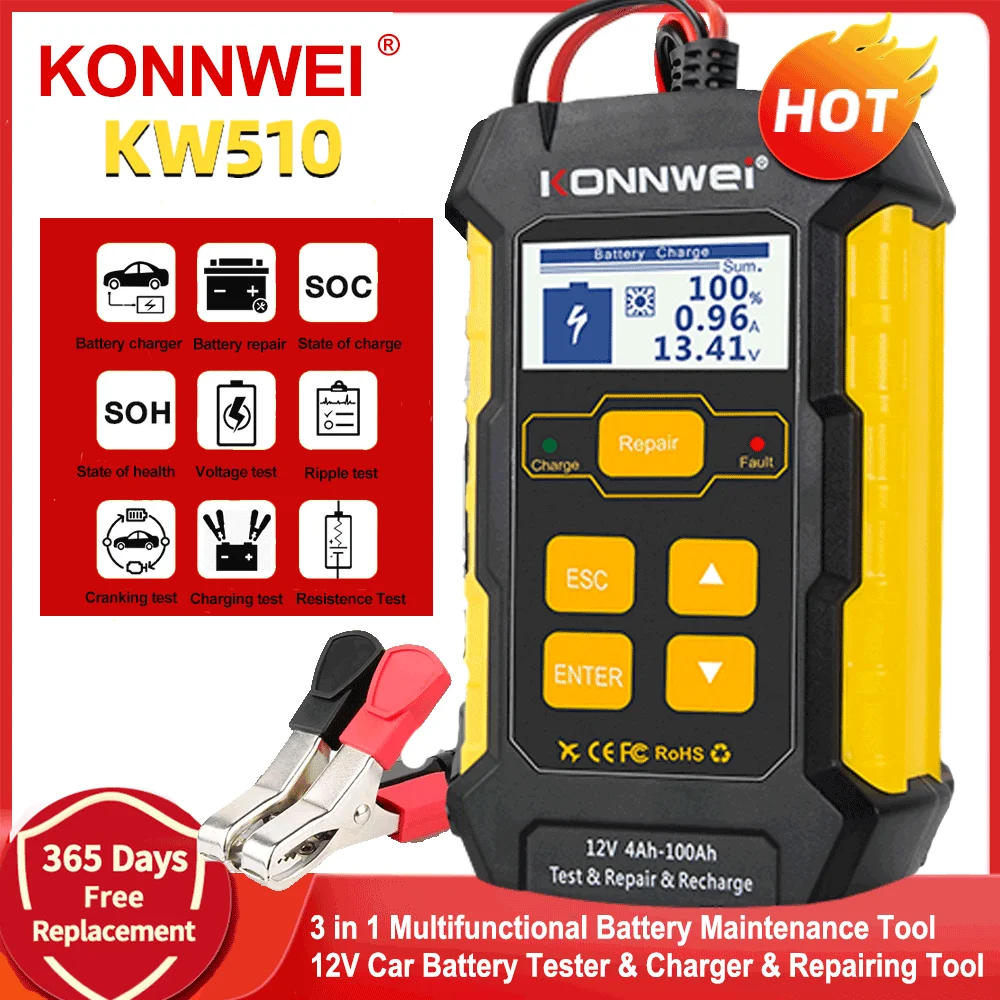

KONNWEI KW510 Car Battery Tester Full Automatic 12V Car Battery Repair Tool Load Cranking Battery Charger Detect Tool PK BM550
KONNWEI KW510 Powerful 12V Battery Charger and Repairing Tool
Fully Automatic Battery Tool: charge batteries as low as 2-volt, max output 12-volt 5-amp. KW510 battery charger not only helps you charge the batteries but also adapts the newest pulse repair technology, one-click repair and automatically detects battery sulfation and acid stratification to bring the batteries back to life and restore their performance.KONNWEI KW510 Full Automatic 12V Car Battery Tester Pulse Repair 5A Battery Chargers Wet Dry AGM Gel Lead Acid Car Repair Tool
Support 8 Languages:
English, Russian, French, German, Italian, Spanish, Portuguese, Dutch.
KONNWEI KW510 Battery Test
Accurate Battery Tester
Has your battery running for years but no idea about its status?
KW510 12v battery tester provides you an overall analysis of battery health by checking its voltage charge, internal resistance then tells you whether the battery needs to be recharged or not.
1. System voltage 12 Volts and Voltage test, give you results about the Status of Charge(SOC) and Status of Health (SOH).
2. Test Result Summary Good, Recharge or Replace.
3. Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (mΩ) and Life in percentage (%) SOH.
4. Cranking system test
Test and analyze the starting motor. Testing the actual required cranking current and cranking voltage of the starting motor is helpful to determine whether the starting motor works properly or not.
5. Charging system test
Check and analyze the vehicle battery charging system, including generator, rectifier, rectifier diode, etc., thus to find out whether the output voltage of the generator is normal, the rectifier diode works properly and the abnormals.
6. Record and Review battery data.
7. The major battery standards CA, CCA, BCL, MCA, JIS, SAE, EN, DIN and IEC are supported.
KONNWEI KW510 Support Charge All 12V Lead-acid Batteries
1. Large LCD clearer display screen
2. Automatic detecting of ambient temperature, so that winter is plentiful, summer is not plentiful
3. Max output 12-volt 5-amp, input 100-230-volt, charge dead batteries as low as 2-volt
4. MULTIPLE PROTECTION
Short circuit / Overcurrent protection / Overheat protection / Fireproof material / Low pressure protection / Overpressure protection / Mislink protection / Electrification protection the charger will automatically turn off the power supply to protect the battery and charger.
Easy 3 Steps, Get your battery like brand NEW
Battery Test: Support battery health check, battery charging test.
Battery Charge: Charge your battery with KONNWEI intelligent battery charger.
Repair and fix: one-click repair your battery using pulse voltage and current, increse the performance and SOH.
KW510 Covers 9 Battery Testing Standards:
New Intelligent and Safe Design, Overheat and Current Protection
KW510 also supports up to 8 kinds of protection like reverse polarity, overload, over-current, overheat, cooling system, fireproof material, short circuit protection, etc.
Services FOR MOST 12V Batteries
Designed for testing and charging 12-volt lead-acid automotive, marine, and deep-cycle batteries, including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries.
Compatible with all types of vehicles – charge and maintain cars, motorcycles, lawn mowers, ATVs, lawn tractors, trucks, SUVs, boats, PWCs, classic cars, and more.
Battery charger specification:
AC input: 100-240V/50-60Hz
Output: Voltage 12V
Output: Current 5A
Output Volt No Load: 13.8V
Minimum Start Volt: >2.0V
Input Power with Load: Max 80W
Input Power No Load: 3W
Charging Capacity Range: 4AH-100AH
Temperature Compensation: Yes, Winter & Summer Mode
Compatible Battery Type: All types of Lead-acid batteries
The Method of Charge and repair operation the Battery
Step 1：Connect the red clamp to battery positive pole, black to negative pole. Reverse connection will not damage battery but not able to charge or repair.
Step 2：Connect the KW510 power side to A/C supply. 50/60hz 110- 230V. see above Pic 2.
Step 3：Select the battery charge option from the main menu. The KW510 will automatically charge Operation the battery with 7-stages output, and keep it at a trickle current at last, so no need to worry about the overcharge or overheat issues
Display the Battery 's Software
▲KONNWEI KW510's Packing List:
– KONNWEI KW510 battery test & charger & repair too
– Multi-language user manual
– Charging Cable (4 Choices)
– Retail Box and safe packing
