Autel MaxiTPMS ITS600E TPMS Sensor Programming Tool
- Brand Name: Autel
- Origin: Mainland China
- External Testing Certification: ce
- Hardware Version: Newest
- Item Length: 7.2inch
- Special Features: Bluetooth,Wifi
- Software Version: Newest
- Item Width: 3.5inch
- Model Name: Autel MaxiTPMS ITS600E
- Item Height: 0.87inch
- Power: 5 V/2 A
- Item Type: Pressure & Vacuum Testers
- Item Weight: 0.4kg
- Voltage: 5 V
- Electronic: Yes
- Material Type: Plastic+Mental
- Item: TPMS Bluetooth Diagnostic Scan Tool
- Type: TPMS Relearn tool
- Operating System: AndroidTM 9.0
- Processor: Quad-core processor (1.5 GHz)
- Memory: 1GB RAM DDR4 & 64GB ROM
- Display: 5.5-inch LCD capacitive touchscreen with 1280×720 resolution
- Connectivity: Wi-Fi; USB 2.0, Type C; BT
- Sensors: Light sensor for brightness auto adjust
- Audio input/output: Input: N/A; Output: Beep
- Battery: 3.8 V/5000 mAh
- Power: Charges via 5 V AC/DC power supply
- Operating Temp.: -10 to 45°C(14 to 113°F)
- Storage Temp.: -20 to 60°C (-4 to 140°F)
- TPMS Software Update: Free Update
- Warranty: 1 Year
- Better: TS501, TS508
- Features 1: Worldwide Vehicle Coverage 99%
- Features 2: Activate, Read, Relearn All Known TPMS Sensors
- Features 3: Four Programming Options
- Features 4: Autel Sensor Batch Programming
- Features 5: OBDII Relearn / Automatic Relearn / Stationary Relearn
- Features 6: Relearn Procedure Guide
- Features 7: Exclusive TPMS Status Screen
- Features 8: Indicate sensor OE part number
- Features 9: Check MX-Sensor Information
- Features 10: Tire Pressure Placard Value Reset
- Features 11: Test Remote Key Entry (RKE)
- Features 12: Read/Clear Codes for TPMS System
- Features 13: DOT Scan, Tire Expiration Notice, Tire Recall Lookup
- Features 14: Test Report
1. We are Authorized Distributor of Autel. We promise: All our store products are 100% Original Autel Genuine !!! If not, Double compensation will be provided!!!
2. Autel MaxiTPMS ITS600 After-sales Service: 1 Year Warranty & TPMS Software Free Update
3.Support Multiple Languages:
English, Traditional Chinese, French, German, Spanish, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Hungarian, Czech,Portuguese
3.Oversea Warehouse Shipping:
1/ From CN: All countries (DHL/Fedex: 15-60 days shipment.)
2/ From Spain: European countries, we have paid the tax. ( 7-15 Days shipment)
3/ From US: USA, we have paid the tax. ( 7-15 Days shipment)
4/ From AU: Autralia, we have paid the tax. ( 7-15 Days shipment)
5/ From Russia: Russia, we have paid the tax. ( 7-15 Days shipment)

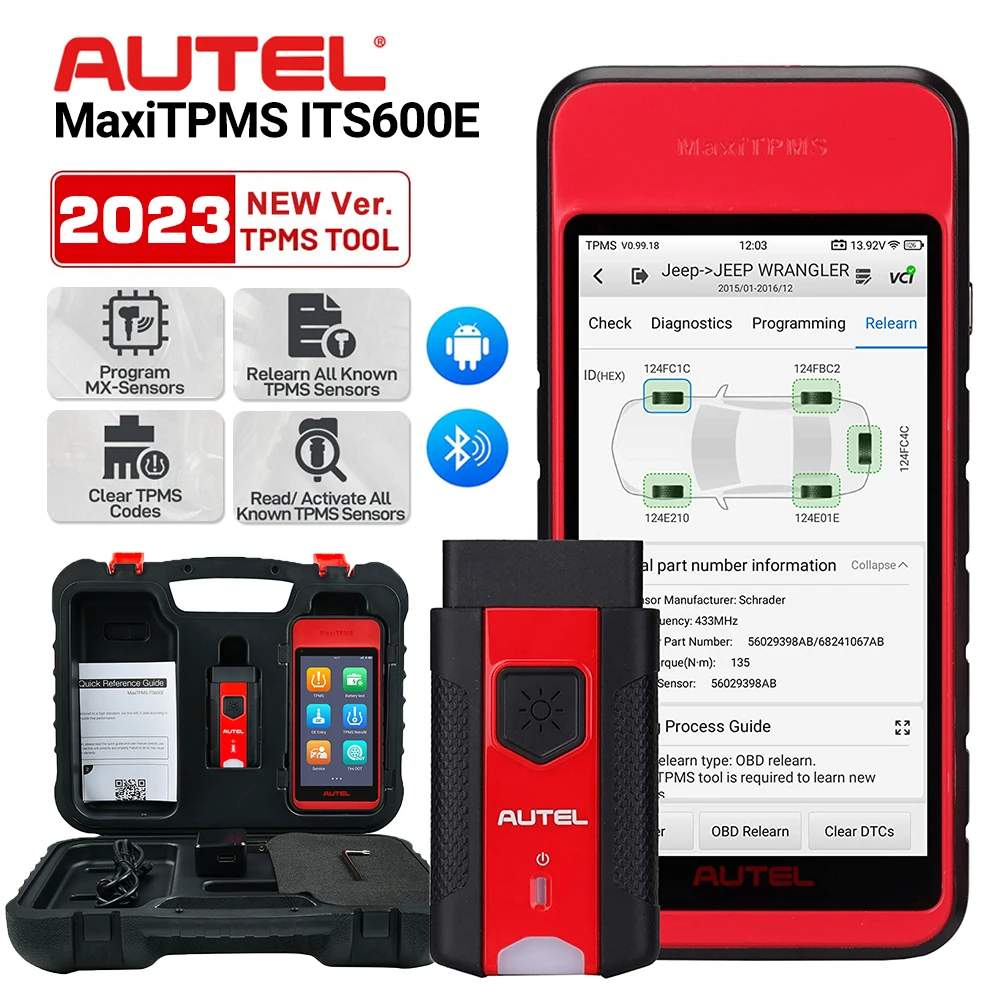

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI).
Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles.
The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup.
The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
【EVERYTHING TPMS SOLUTIONS】: Activates, reads and relearns all known sensors; Fast OBDII relearn for most vehicles; Program MX-Sensors to replace 99% of OE sensors; Copy By OBD sensor programming for faster service; Four MX-Sensor program modes; batch program up to 20 MX-Sensors; Includes wireless Bluetooth vehicle communication interface (VCI); Tire pressure placard value reset; Read/Clear TPMS system codes & view live data; Free Wi-Fi software updates for the life of the tool.
【QUICK VEHICLE ID TECHNOLOGY】: Rapid VIN acquisition via optical VINScan; QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input; Identify MMY and sensor OE part number via VIN decoding.
【DIAGNOSTICS & SERVICE】: Oil light reset; Electronic brake service; Battery registration; Steering angle reset; Included service function updates are free for the life of the tool; All systems diagnostics and maintenance services software available with Pro Upgrade purchase.
【EXPANDED TIRE SERVICE】: Quick & Easy Tire DOT Number Scan; Tire Expiration Notice; Tire Recall Lookup; Tread Depth & Brake Disc Wear; Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200; Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips.
Upgrades of TS408/TS501/TS508/TS601:
MaxiTPMS ITS600 is a newly released TPMS scan tool. ITS600 programming tool upgrades of TS408/TS501/TS508/TS601, integrates their superior features, and adds TPMS retrofitting and 4 diagnostic functions. Based on Android OS and 1.5 GHz quad-core processor, ITS600 reset tool provides quick and easy-to-operating TPMS diagnostics and TPMS services.
Autel MX-Sensor Programming :
The Programming function allows users to program the sensor data to the MX-Sensor to replace existing sensors with low battery life and ones that are no longer functioning. ITS600 activating tool can handle maximum of 20 MX-Sensors at the same time. (TS608 only programs 16 MX-Sensors.) ITS600 reset tool is designed with 4 options for program the MX-Sensors and users can choose the appropriate method to obtain the ID according to the actual situation of the original sensor.
Copy by OBD: If the IDs retrieved from sensor activation and those registered to the TPMS ECU are different, ITS600 TPMS scanner will program the sensor IDs retrieved from the ECU to the new MX-Sensors.
Copy by Activation: If the original sensor still can be activated, you can use the ITS600 activating tool to trigger it, obtain the original IDs, and then write them into the new MX-Sensors.
Manual Input: If the original sensor is completely broken or can’t be activated, you can find the old ID from the label, and manually input it to new MX-Sensors.
Auto Create: If the original sensor cannot be activated or the original sensor ID cannot be obtained, you can use the ITS600 TPMS scan tool to automatically create a new random ID to MX-Sensor.
3 Relearn Ways to Identify New Sensor:
Relearn function is used to transfer new sensor IDs into the vehicle ECU for sensor recognition. ITS600 diagnostic tool features 3 relearn ways including OBD Relearn, Automatic Relearn, and Stationary Relearn, which can deal with 98% of vehicle models and relearn all the 315/433MHz sensors.
OBD Relearn: OBD relearn allows the ITS600 reset tool to directly write the TPMS sensor IDs to the TPMS module via the OBD connector to make the on-board TPMS modules recognize the new sensors.
Automatic Relearn: For some vehicles, the “Relearn” function can be completed automatically by driving, which makes it quite easy to do a complete set of sensor replacement operations on your own.
Stationary Relearn: This relearn way requires the vehicle to be placed in the “Relearn Mode” and follow the on-screen instructions to finish “Relearn”.
4 Scan Ways of Vehicle Identification:
ITS600 TPMS tool couples with 3 quick and convenient methods available for acquiring VIN information to finish vehicle identification: Auto VIN Detect, Scan License, and Scan VIN. This technology greatly reduces the diagnostic time and brings convenience for users. If you cannot find the VIN or the camera cannot successfully identify the VIN/license number, you can manually select vehicle make, model, and year to complete vehicle identification.
Auto VIN Detect: Automatically acquire vehicle information and identify the application electronically through the OBDII Diagnostic Port.
Scan License: Open the camera and scan the license number to enter the identification page, easy and useful.
Scan VIN: Scan the vehicle's VIN or Barcode/QR code directly to get information (vehicle make, model, year, etc.)
4 Reset Functions:
ITS600 diagnostic scanner is specially designed with 4 commonly used diagnostic functions to provide quick access to the vehicle systems for various scheduled reset and maintenance tasks. ITS600 relearn tool innovates the design of configuring the diagnostic function on the tire pressure tool and performs Oil reset, EPB, BMS, and SAS Calibration.
Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.
EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.
SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.
Expanded Tire Service:
Tire Tread & Brake Disc Wear Detection
ITS600 scanner can measure the status of tire tread depth & brake disc wear, display results graphically display, and add data into TPMS test report for comprehensive analysis and tire replacement & maintenance suggestions. This detection will alert users of tire wear in time to prevent dangerous situations. ITS600 diagnostic scan tool work together with Autel MaxiTPMS TBE200 to perform wear detection.
Tire Expiration Notice & Recall Lookup
ITS600 tool will identify the year of the tires by scanning the DOT code to determine if the tires need to be replaced. That can prompt/guide drivers to replace tires to avoid the risk of blowouts caused by aging tires. The Tire DOT application contains two parts – DOT Recall and DOT Scan functions. Tire DOT function scans the tire DOT serial number located on the sidewall to acquire basic characteristics such as tire age, recall status, and warning.
Recommended Use: Indoor
Operating System: Android™ 9.0
Processor: Quad-core processor (1.5 GHz)
Memory: 1GB RAM DDR4 & 64GB ROM
Display: 5.5-inch LCD capacitive touchscreen with 1280×720 resolution
• USB 2.0, Type C
Sensors: Light sensor for brightness auto adjust
• Input: N/A
• Output: Beep
Power and Battery:
• 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply
Battery Charging Input: 5 V/2 A
Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp.: -10 to 45°C(14 to 113°F)
Storage Temp.:-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D): 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
Net Weight: 368 g (0.8 lb.)
Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
ITS600E Package List:
1*Type C USB Cable
1*Quick Reference Guide
